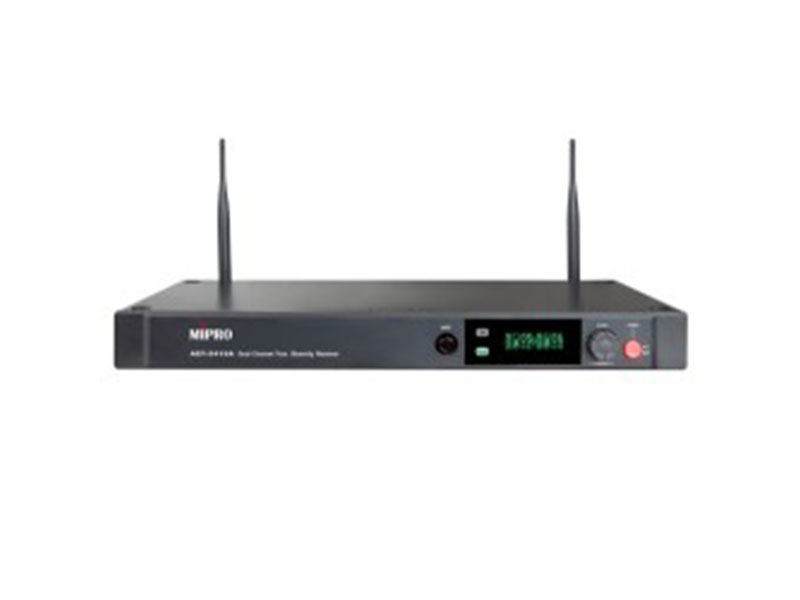

ACT-2412A 2.4GHz Dual-Channel Receiver

ACT-2412A 2.4GHz Dual-Channel Receiver MIPRO’s Digital Diversity ACT-2400 Series wireless system addresses the industry’s 2.4GHz issues of range, signal stability and channel density. The ACT-2412A receivers operate in the 2.4GHz-ISM band using stable 4- frequency FSK modulation circuitry to provide strong RF signal stability and extended range, utilize dual-tuner true digital diversity reception, and deliver 12 compatible channel operations without signal dropout.

The ACT-2412A receiver features removable antennas and includes rack ears. These receivers utilize the ACT-24HCACT-24TC and MT-24 transmitters.

  • MIPRO’s Digital Diversity ACT-2400 Series wireless system addresses the industry’s 2.4GHz issues of range, signal stability and channel density
  • By using an adaptive tracking algorithm, the 2400-Series skips the common Wi-Fi frequencies effectively avoiding interference from most 2.4GHz communication products
  • Utilizes a 4 frequency spread spectrum technique that avoids and remaining interference
  • With dual tuner true digital diversity receiving, receiving distance is up to 100 meters (330 ft.) with no signal drop-out
  • 12 compatible simultaneous channel operation
  • 24-bit / 44.1 kHz digital audio sampling
  • Lo-Cut and Flat EQ settings
  • Adjustable AF gain & RF power output
  • Full-rack dual and quad channel systems
  • Receiver is enclosed in a sturdy metal case
  • Removable antennas
  • Rack mount hardware included

  • Chassis: EIA Standard 19" 1U
  • Display Graphic: OLED
  • Frequency Range: 2.4GHz ISM band (2.4 – 2.4835GHz)
  • Preset Frequency: 12
  • Frequency-hopping: Each channel has 4 preset hopping frequencies
  • Receiving Mode: Dual-tuner Digital Diversity
  • Audio Sampling: 24-bit / 44.1 kHz
  • Sensitivity: -95 dBm
  • S/N Ratio: > 115 dB(A)
  • T.H.D.: 0.1 % @ 1 kHz
  • Audio Frequency Response: 20 Hz – 20 kHz (-2 dB)
  • Output Connectors: Balanced XLR & Unbalanced 6.3 mm (1/4 ")
  • Audio Output Adjustment: 0 dB (standard), -10 – +20 dB adjustable range
  • Latency: < 4.0 ms
  • Antenna: Rear panel, detachable
  • Power Supply: External AC Power Supply
  • Power Consumption: 2.4 W
  • Dimensions: 420 × 44 × 180 mm / 16.5 × 1.7 × 7.1 "
  • Weight: Approx. 1.4 kg / 3.1 lbs
  • Operating Temperature: -10 – +60℃
