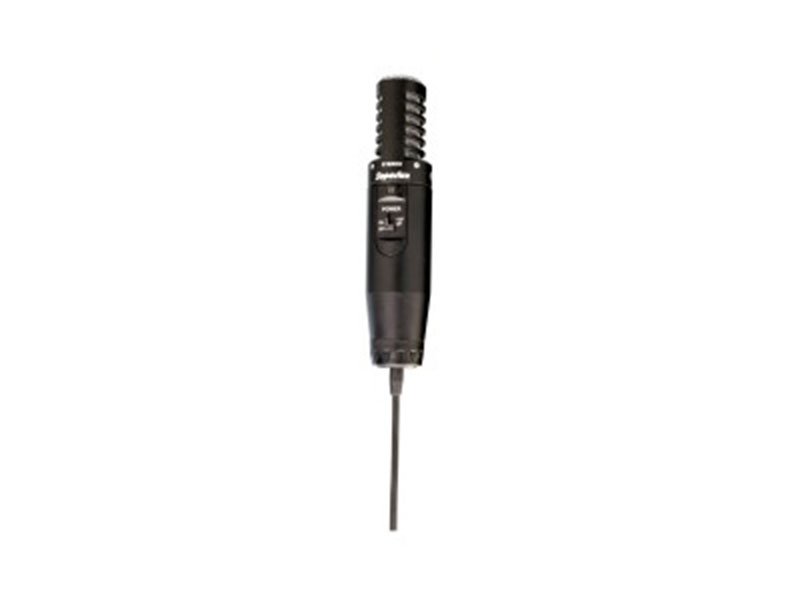

E531BCS MS Stereo Microphone

The E531/BCS is configured with an M/S stereo arrangement for capturing realistic and natural live sound or field recording. The effective coverage angle can be switched to 90 degrees for applications such as a solo instrument or dialogue or 120 degrees for a wider pattern to record applications such as orchestra, choir, stage or outdoor venues providing natural spatial impact and realism. The E531/BCS is ideal for digital recording devices for professional stereo applications.

Features

Specs

  • Type: Single point stereo (Mid-Side arrangement) electret condenser microphones
  • Polar Pattern: Cardioid for Mid, and figure of 8 for Side, Coverage at 90° or 120°
  • Frequency response: 100~15,000Hz
  • Sensitivity: -45dBV/Pa (5.6mV/Pa) ±4dB @ 120° setting. Channel difference within 34dB
  • Nominal Impedance: 1k ohm ± 20% at 1kHz
  • Minimum Load Impedence: 2k ohm
  • Max SPL: 110dB (THD ≤ 1% 1kHz)
  • Equivalent Noise: 25 dB SPL
  • Signal to Noise: 69dB
  • Dynamic Range: 85dB
  • Power Source: 1.5V AA Battery
  • Power Consumption: 4mA
  • Battery Lifetime: approx 200 hours
  • Output Connector: 3.5mm stereo plug
  • Weight (including battery): 110g (3.88oz)
