SMK-H8K Matched Pair Instrument Condenser Microphones

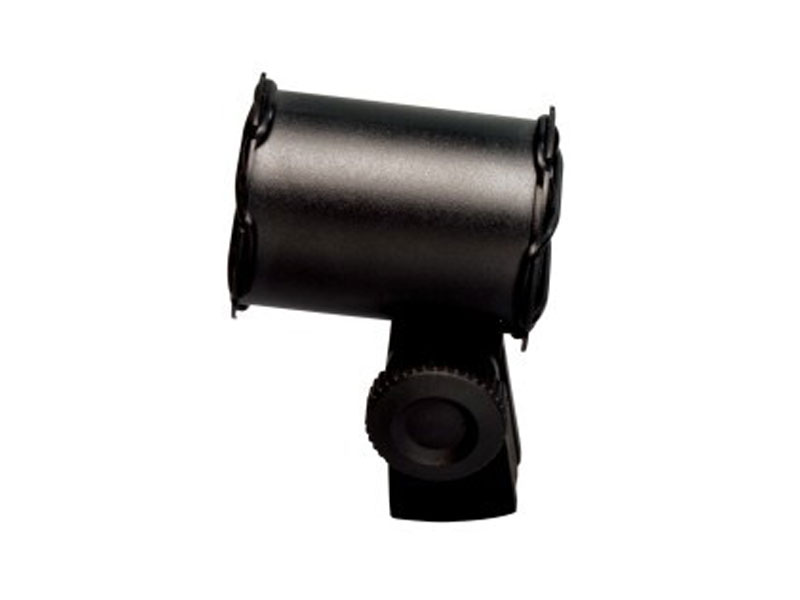

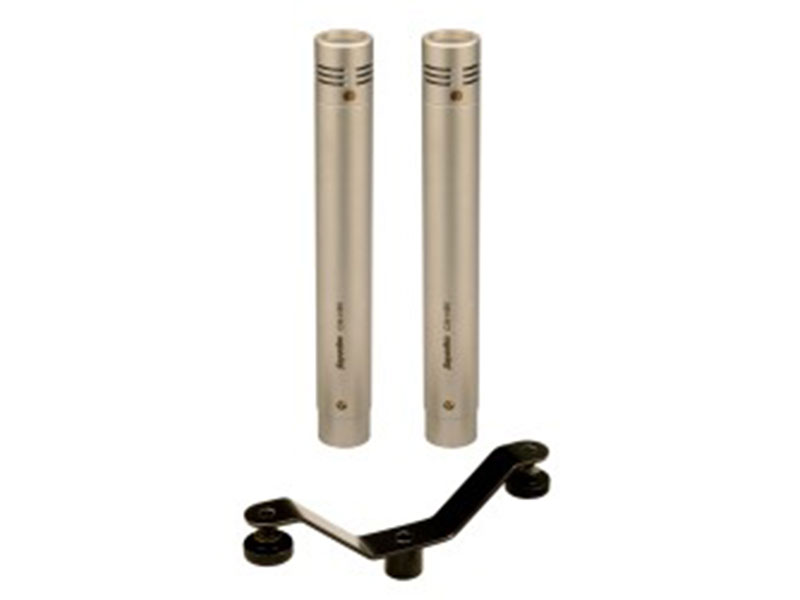

SMK-H8K Matched Pair Instrument Condenser Microphones The SMK-H8K stereo set includes two cardioid electret condenser microphones, two shock-mounts and one HM-15 stereo mount with a distance of 6.7" between the two ends. The microphones of this set, when installed on the HM-15 mount, are in accordance with the ORTF French Standard Mode stereo. This mount holds the two microphones at an angle of 90 ~ 120º between them, thus achieving the X/Y Mode stereo which approximates the actual sound heard by a pair of human ears. If the two microphones are installed with a distance of 10 ~ 16 ft. in between, the A/B Mode stereo sound is realized.

  • Wide frequency response
  • High sensitivity, wide dynamic range, low distortion
  • Identical features in both microphones
  • ORTF mode gives depth and realism, free of distortion

  • Type: Back electret condenser microphone
  • Polar Pattern: Cardioid
  • Frequency Response: 40~20000hz
  • Sensitivity: -40dBV/pa (10mv/pa)
  • Rated Impedance: 200Ω
  • Equivalent Noise Level: 22dB (A weighted IEC/DIN 651)
  • Max. SPL: 134dB (THD ≤ 0.5% 1000Hz)
  • Dynamic Range: 112dB
  • Power Supply: 48V Phantom Powered (IEC268-15/Din 45596)
  • Current Consumption: 3.5mA
  • Dimensions: Φ0.8" x 5.9"
  • Net Weight: 6oz
