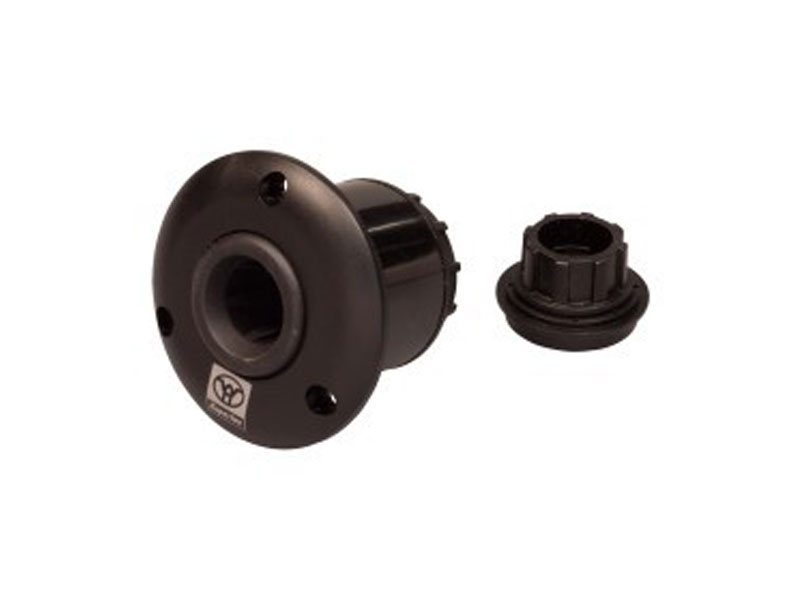

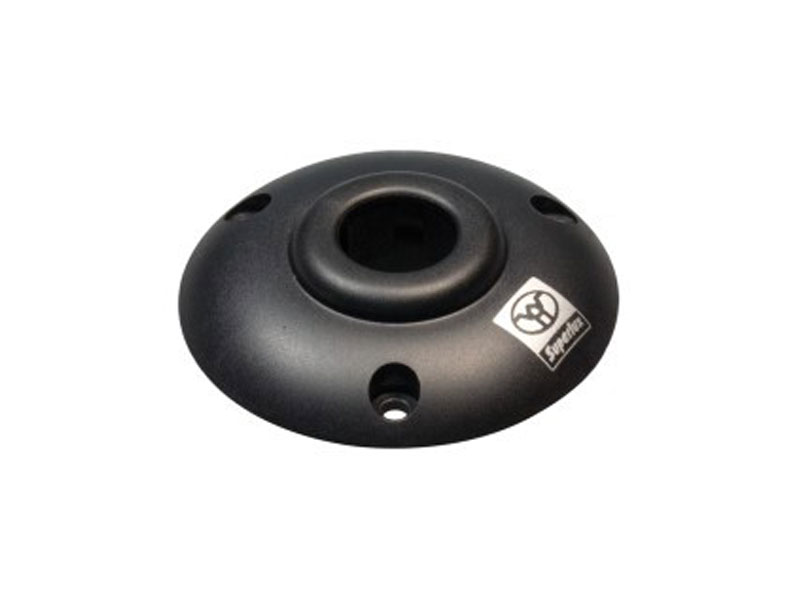

Cardioid polar pattern; 9.7mm back electret condenser; RF shielding; High-pass filter (E323L & M); On/Off switch with LED (E322LS & MS); 18 and 24 inch overall lengths; Balanced preamplifier output; Shock mount included; Compression-lock flange mount included; Foam windscreen included; HM-22 Shock Mount and HM-23 Flange Mount included
Element: 9.7mm Back Electret Condenser; Polar Pattern: Cardioid; Frequency Response: 40—20,000 Hz; Sensitivity: -40dBV/Pa (10mV/Pa) 1 Pa = 94dB SPL; Equivalent Noise: < 24dB (A-weighted); Dynamic Range: 103dB (1000 ohm load); Minimum Load Impedance: 2000 Ohms; Rated Impedance: 600 Ohms; Max SPL: 127dB (THD ≤ 1% 1kHz); Dynamic Range: 103dB (1000 ohm load); Low Frequency Roll-off: 100Hz, 12dB/OCT (E322L & E322M); Phantom Power Requirements: 9 to 48 VDC; Finish: Black or White; Connector: 3 pin Male XLR; Weight: E322L 7.76oz. E322M 5.64 oz.
The Superlux E322 Series of gooseneck quick-mount back-electret condenser microphones are designed primarily for speech and vocal reinforcement applications. The E322 is available in two overall lengths; 18 and 24 inches, and in a number of configurations with features such as a large 9.7mm diaphragm, RF shielding, high pass filter, on/off switch with LED indicator and either a white or black finish. These versatile install products are ideal in boardrooms, conference and meeting rooms, simultaneous translation environments, council chambers, courtrooms, and places of worship. Whether on a lectern or pulpit, on a desktop or conference table, the Superlux family of gooseneck microphones are the perfect solution.
