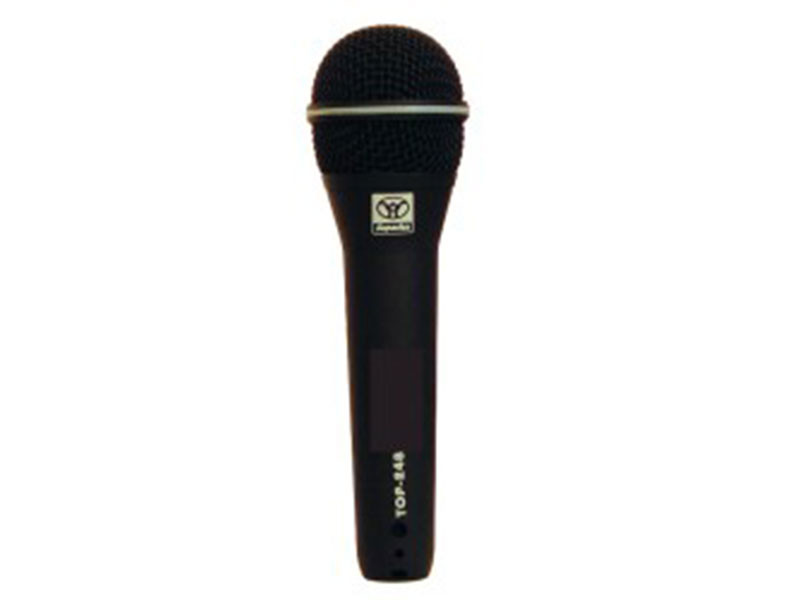

TOP-248 Dynamic Vocal Microphone

The Superlux TOP-248 microphone is designed for professional vocal and instrument live sound applications. This dynamic super cardioid microphone incorporates neodymium magnets and an aluminum voice coil with a dual dome diaphragm and an output transformer providing higher sensitivity and a smooth frequency response with clean and detailed sound texture.

The capsule has excellent off-axis rejection and high gain before feedback characteristics. The TOP-248 features an enhanced lower frequency (60 – 240 Hz) response yet has great texture detail on the high frequency band producing a deeper and richer sound well suited for professional vocal performances.

The TOP-248 uses gold-plated XLR 3-pin connectors and a grill windscreen made of reinforced metal mesh. The body is a rugged zinc alloy with a black rubber finish for a more comfortable feel. It has low handling noise and excellent gain before feedback. The Superlux TOP-248 delivers studio-grade quality that is ideal for any professional vocal audio application.

Features

Specs

  • Element: Neodymium Dual Dome Capsule
  • Polar Pattern: Super Cardioid
  • Frequency response: 50—16,000 Hz
  • Sensitivity: -54dB/V (2.4mV/Pa) at 1000 Hz
  • Impedance 300 Ohms
  • Max SPL: 150dB at 1000 Hz (THD ≤ 1% 1kHz)
  • Connector: Integral gold plated 3 pin Male XLR
  • Weight: 14.3 oz
