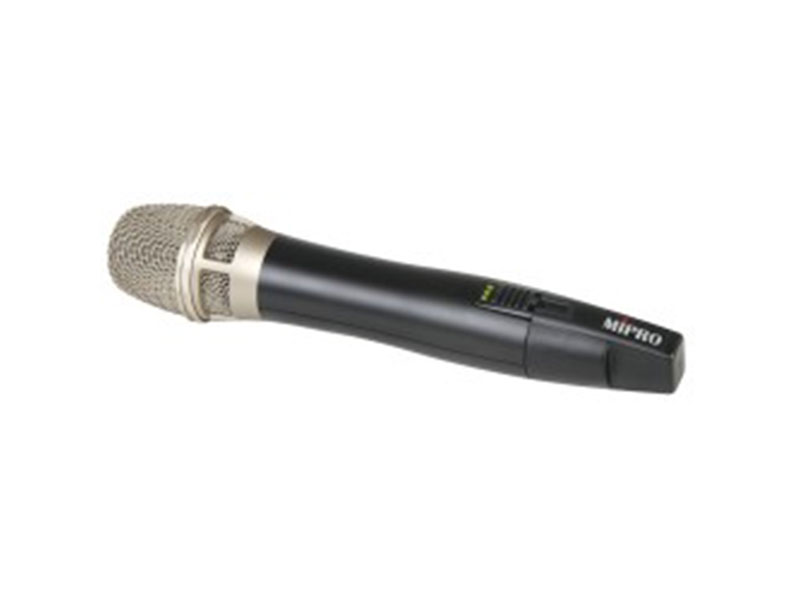

ACT-24HC 2.4GHz Digital Handheld Transmitter

ACT-24HC 2.4GHz Digital Handheld Transmitter MIPRO’s Digital Diversity ACT-2400 Series wireless system addresses the industry’s 2.4GHz issues of range, signal stability and channel density. The 1/2U, single- and dual-channel digital receivers operate in the 2.4GHz-ISM band using stable 4- requency FSK modulation circuitry to provide strong RF signal stability and extended range, utilize dual-tuner true digital diversity reception, and deliver 12 compatible channel operations without signal dropout.

The ACT-24HC handheld boasts a condenser capsule with off-axis rejection and low handling noise. These rechargeable transmitters deliver 10 hours of use on a 4-hour charge.

  • 3 LEDs indicate battery status and turn red to indicate low battery
  • The multi-layered metal grille protects the capsule against impact, rolling and pop noise
  • Condenser cardioid capsule delivers better reliability, sensitivity and sound quality
  • Proprietary capsule suspension design virtually eliminates handling noises for true natural sound reproduction
  • Outstanding off axis rejection reduces feedback
  • Locking on/off switch
  • One-touch ACT syncs the transmitter and receiver frequency automatically
  • These rechargeable transmitters deliver over 10 hours of use on a 4-hour charge. A 25-minute fast charge provides up to 1-hour operation. The included single rechargeable lithium battery can be easily removed or interchanged for charging. The included intelligent battery charger maintains a high charge capacity for up to 600 charge cycles

  • Frequency Range:  2.4GHz ISM band (2.4 – 2.4835GHz)
  • Channel Set-Up:  ACT Sync
  • RF Output Power:  2 mW / 10 mW switchable (country dependent)
  • Transmitting Mode:  Frequency hopping
  • Max. Audio Input:  6.5 dBV
  • Battery Meter:  4-level green / red LED display
  • Battery Type:  ICR 18500 rechargeable lithium battery × 1
  • Current Consumption:  Approx. 138 mA
  • Operating Time:  A 25-minute fast charge provides up to 1 hour operation. Minimum 10 hours of operation per 4-hour full charge (depending on the battery quality)
  • Dimensions:  (Ø × L) 51× 248 mm / 2.0 × 9.8 "
  • Net Weight:  Approx. 255 g / 9 oz
