Receiver: MIPRO’s Digital Diversity ACT-2400 Series wireless system addresses the industry’s 2.4GHz issues of range, signal stability and channel density. By using an adaptive tracking algorithm, the 2400-Series skips the common Wi-Fi frequencies effectively avoiding interference from most 2.4GHz communication products. Utilizes a 4 frequency hopping spread spectrum technique that avoids any remaining interference. With dual tuner true digital diversity receiving, receiving distance is up to 100 meters (330 ft.) with no signal drop-out. 12 compatible simultaneous channel operation. 24-bit / 44.1 kHz digital audio sampling. Lo-Cut and Flat EQ settings. Adjustable AF gain & RF power output. Half rack single and dual channel systems. Receiver is enclosed in a sturdy metal case. Front mounted antennas. Optional rack mount hardware. ACT-24TC Transmitter: Miniature, sturdy plastic compact design. 3 LEDs indicate battery status and turn red to indicate low battery. LED in the mute/AF button is lit or off to indicate AF status. Connector for optional MJ-70 remote mute fob. One-touch ACT syncs the transmitter and receiver frequency automatically. Selectable impedance for microphone or guitar/line inputs. Mini-XLR input with secure screw lock connector for Lavalier, head worn mics and guitar. These rechargeable transmitters deliver over 10 hours of use on a 4-hour charge. A 25-minute fast charge provides up to 1-hour operation. The included single rechargeable lithium battery can be easily removed or interchanged for charging. The included intelligent battery charger maintains a high charge capacity for up to 600 charge cycles.

Receiver: Chassis: EIA Standard 19″ 1/2U. Display Graphic: OLED. Frequency Range: 2.4GHz ISM band (2.4 – 2.4835GHz). Preset Frequency: 12. Frequency-hopping: Each channel has 4 preset hopping frequencies. Receiving Mode: Dual-tuner Digital Diversity. Audio Sampling: 24-bit / 44.1 kHz. Sensitivity: -95 dBm. S/N Ratio: > 115 dB(A). T.H.D.: 0.1 % @ 1 kHz. Audio Frequency Response: 20 Hz – 20 kHz (-2 dB). Output Connectors: Balanced XLR & Unbalanced 6.3 mm (1/4 “). Audio Output Adjustment: 0 dB (standard), -10 – +20 dB adjustable range. Latency: < 4.0 ms. Antenna: 2 × 50 Ω fixed antenna. Power Supply: External AC Power Supply. Power Consumption: 1.6 W. Dimensions: 210 × 44 × 180 mm / 8.3 × 1.7 × 7.1 “. Weight: Approx. 0.75 kg / 1.7 lbs. Operating Temperature: -10 – +60℃. Transmitter: Frequency Range: 2.4GHz ISM band (2.4 – 2.4835GHz). Channel Set-Up: ACT Sync. RF Output Power: 2 mW / 10 mW switchable (country dependent). Transmitting Mode: Frequency hopping. Max. Audio Input: 6.5 dBV. Impedance: 1.0M Ω. Mute Connector: Optional MJ-70 remote mute switch. Battery Meter: 4-level green / red LED display. Battery Type: 1 ICR-18500 rechargeable lithium battery. Current Consumption: Approx. 138 mA. Operating Time: A 25-minute fast charge provides up to 1 hour operation. Minimum 10 hours of operation per 4-hour full charge (depending on the battery quality). Dimensions (W × H × D): 63 × 70 × 25 mm / 2.5 × 2.8 × 1 “. Net Weight: Approx. 66 g / 2.3 oz.

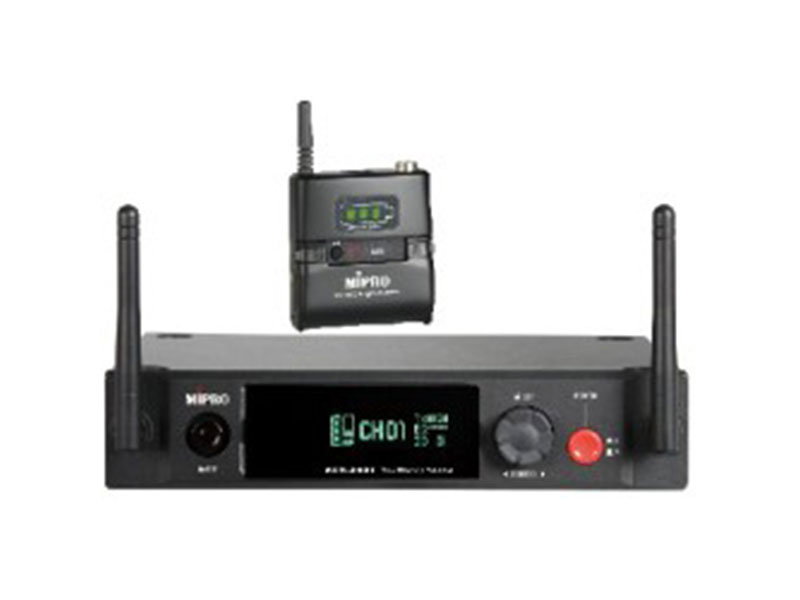

ACT-2401/ACT-24TC Single Channel 2.4GHZ Bodypack System

MIPRO’s Digital Diversity ACT-2400 Series wireless system addresses the industry’s 2.4GHz issues of range, signal stability and channel density. The 1/2U, single- and dual-channel digital receivers operate in the 2.4GHz-ISM band using stable 4- requency FSK modulation circuitry to provide strong RF signal stability and extended range, utilize dual-tuner true digital diversity reception, and deliver 12 compatible channel operations without signal dropout. The ACT-24TC miniature bodypack features separate mute button and status, and selectable impedance for microphone or guitar/line inputs. These rechargeable transmitters deliver 10 hours of use on a 4-hour charge. The ACT-2401/ACT-24TC system includes one ACT-2401 single channel receiver and one ACT-24TC bodypack transmitter
