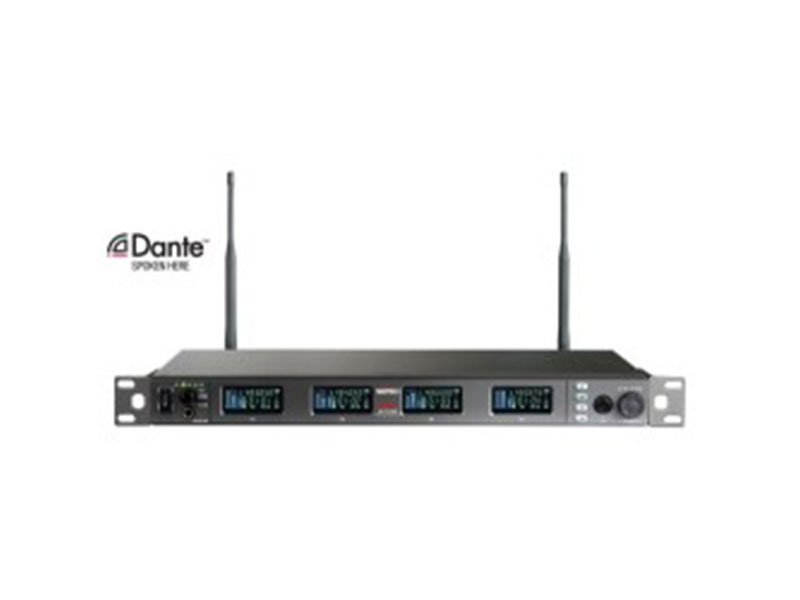

ACT-848 Dante Digital Wideband Encryption-Capable Quad Channel Receiver

ACT-848 Dante Digital Wideband Encryption-Capable Quad Channel Receiver The MIPRO ACT-848 Dante four channel wideband digital wireless receiver delivers outstanding features at an affordable price. An expanded 64MHz bandwidth ensures optimal flexibility, allowing more interference-free compatible channels to select from. The ACT-848 Dante features full-color Vacuum Florescent Display for clear viewing and one touch ACT™ setup. A single rotary control easily controls all system functions. MIPRO's ACT systems are built to handle tough conditions, delivering superb RF reliability and transparent audio performance in a wide variety of professional venues and applications, enabling our customers to specify and install our systems with complete confidence.

  • EIA standard 19", 1RU
  • Dante enabled
  • Full-color VFD display for clear viewing of all parameters
  • Quick and easy system setup via a single rotary control
  • One-touch AutoScan and ACT™ channel setup
  • Enhanced RF circuitry provides reliable RF and transparent audio performance
  • 64MHz wide bandwidth allows more interference-free channels to be selected
  • Digitally-processed RF circuitry eliminates compander noise
  • Second generation DSP technology enhances signal stability
  • Proprietary A/D Converter provides increased dynamic range with low T.H.D and latency
  • SPDIF interface ensures stable S/N ratio even over long distances
  • Proprietary 256-bit encryption with easily changed encryption keys
  • 10 built-in SmartEQ™ presets and user-defined equalization
  • Optional MIPRO RCS2.NET PC software for set-up, control and monitoring
  • 100m (300ft) operating range (line of sight)
  • 100% Made in Taiwan
  • ISO 9001 certified

  • Frequency Range: Bands 5UA & 5NU, UHF 480–590MHz
  • Bandwidth: Bands 5E and 5F: 2,561 selectable frequencies / 216 preset channels with 16+ simultaneous channel operation
  • Receiver Mode: Digital diversity
  • Dante Interface:  Yes
  • Audio Sampling: 24-bit / 96 kHz rate
  • Audio Compression: 2nd generation DSP inertial coding
  • Latency: <2.9ms
  • Frequency Response: 20Hz~20kHz (-2dB)
  • Audio Dynamic Range: >115dB(a)
  • T.H.D. >0.03% @ 1kHz
  • Encryption: 256-bit
  • Housing: Metal
  • Sensitivity: 15dBμV at S/N=118dBA
  • Digital Equalizer: 10 preset microphone capsule modeling
  • Monitor Output: Headphone monitor connector
  • Digital Audio Interface: AES/EBU output
  • PC Interface: USB or RS-232. Proprietary MIPRO ACT-BUS
  • Power Supply: built-in 100~240V AC switching power supply
  • Dimensions (W x H x D): 420 × 44 × 245 mm / 16.5 × 1.7 × 9.6 "
  • Weight: Approx. 2.2 kg / 4.8 lbs

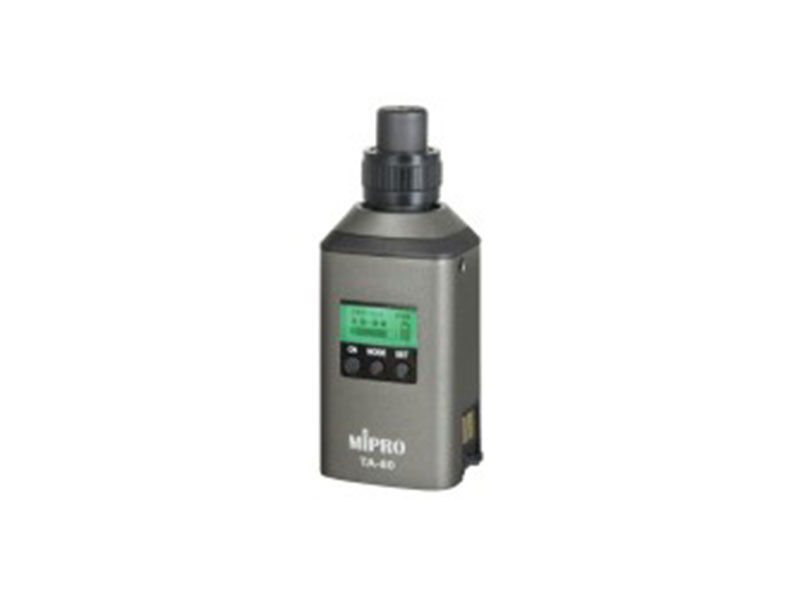

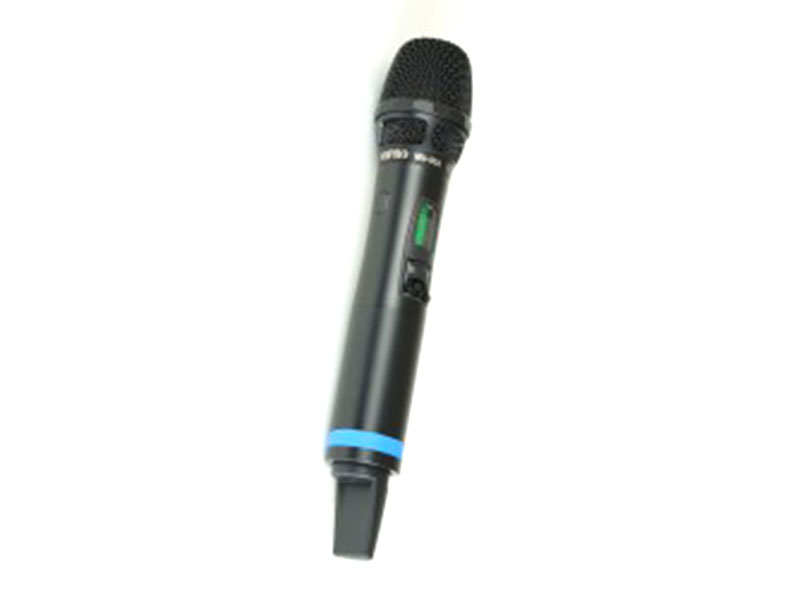

Click HERE for ACT 8-Series Transmitters

Click HERE for optional headworn and lavalier microphones.

Click HERE to view antenna systems and additional accessories.

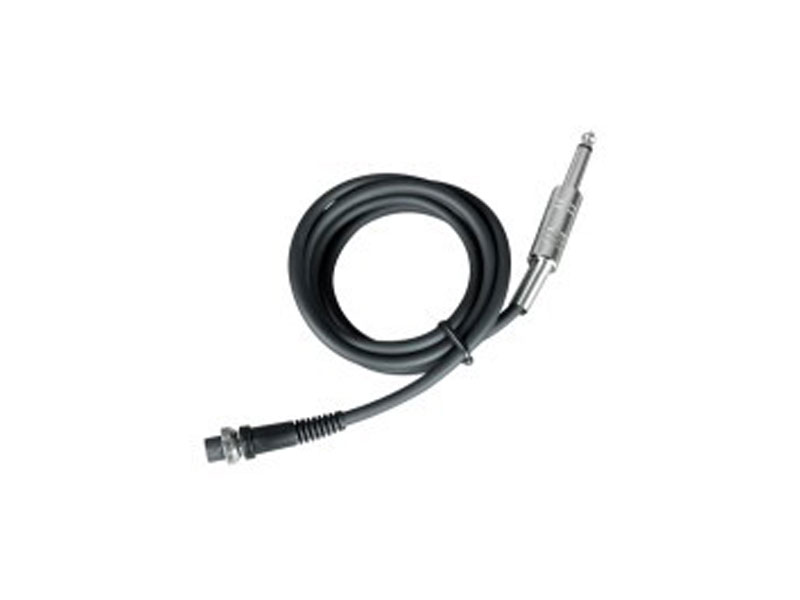

Click HERE to view instrument cables
