• The industry’s most compact and smallest housing
  • Lightweight and rugged magnesium and glass-fiber reinforced plastic housing
  • Backlit LCD screen with superior features and advanced function settings
  • Dual true digital diversity design enhances RF signal stability and extends transmission range
  • Dual, unbreakable soft antennas
  • Selectable stereo, balanced, mono and mixed output modes
  • Selectable EQ settings
  • Fast and easy menu controls and indicators accessible with three buttons
  • Includes ear buds
  • 64MHz bandwidth, 2561 frequencies to choose from
  • 216 presets in 16 groups per band. Up to 16 interference-free channels per group
  • Selectable stereo, balanced, mono and mixed output operation
  • 112dBA dynamic range

Specs

  • RF Frequency Range: UHF 480~604 MHz
  • Bandwidth: 64 MHz
  • Channel Grid:  25kHz
  • Selectable Frequencies: 2561 frequencies in 16 groups per band
  • Compatible preset frequencies per group: 16
  • Housing: Magnesium and glass-fiber reinforced plastic
  • Receiving Mode: True Digital Diversity Receiving
  • System Latency: 5.6ms (unencrypted) and 7.84ms (encrypted)
  • Oscillation Mode: PLL Synthesized
  • Frequency Stability:  ± 0.0005% (-10~ +60°C)
  • Channel Setup:  ACT Sync
  • Modulation Type:  Digital modulation
  • Sensitivity:  10 μ V input level, S/N > 90dB (stereo)
  • Spurious Emissions:  < 4 nW
  • Max S/N ratio:  95dBA
  • Frequency Response: 20Hz ~ 15kHz (stereo)
  • Stereo Separation:  > 95dB
  • Volume Control:  126dB (1dB step)
  • LCD Display:  AF/RF meters, battery status, group & channel, R/L balance
  • Output Jack:  3.5mm Ø stereo earphone jack
  • Output Power:  Left/Right x 120mW @ 16 Ω
  • Earphone Impedance:  ≥ 16 Ω
  • Battery Type: AA X 2
  • Current Consumption:  Approx 170 mA
  • Operating Time:  Approx 8 hours (moderate volume)
  • T.H.D.: 0.1% @ 1kHz
  • Dimensions: 2.6″(W) x .9″(H) x 3.2″ (L)〞
  • Weight: 98g / 3.5 oz
  • Operating Temperature:  -10 ~ +60°C

MI-909R Digital Stereo Bodypack Receiver

The MI-909R True Digital bodypack receiver, the most compact in the industry, has dual antenna true digital diversity reception providing unsurpassed RF Signal stability and extended range. The bodypack receiver features Stereo, Mono-L, Mono-R and Mixed operational modes with balance control and equalization settings.

Works with

MI-909T Digital Stereo Transmitter

Where to buy
MI-909T/R Frequency Charts
Download
MI-909R User Guide
Download
MI-909T User Guide

Accessories

AD-90A Wideband High Power Amplifier

AT-100A Wideband Circularly Polarized Antenna

AT-70Wa Wideband Extension Antenna

AT-90Wa Wideband Extension Antenna

FB-71 Rack Mount Brackets

FB-72 Rack Mount Brackets

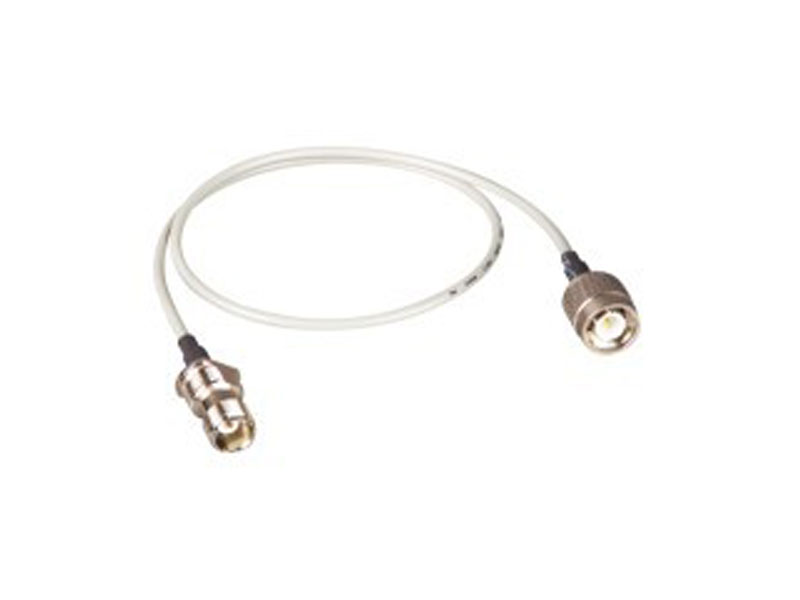

FBC-71 Rear-to-Front Cables
